Kiosk 模式——支援掃描條碼、RFID 標籤、與 Web NFC 標籤

在使用者不便進入 Kimai 的環境(例如倉庫)中,透過使用條碼或 RFID 掃描器來開始與結束工時表紀錄。

Kevin Papst
提供者
Kevin Papst

A Kimai plugin, which allows using barcodes for punch-in and punch-out time tracking with Kimai. You can use it with a barcode scanner, with a web-camera, with a RFID reader or an NFC reader.

It also supports a “freestyle” mode, which allows to enter any free configurable code (up to 120 characters), so you can also use other devices for starting/stopping:

  • an electronic USB number-pad
  • an RFID scanner that acts as keyboard
  • an Android device with Web NFC support (only Chrome browser)

This bundle is the solution for you, if you want to use Kimai in a kiosk mode, where users register their attendance time through punch-in (coming) and punch-out (leaving) mode.

It could be as simple as:

  • Hand out NFC or RFID tokens to your employees
  • Mount a tablet to the wall in your entrance room
  • Let your users check-in & check-out when entering the building by scanning their tokens

You can test it in the “Plugins” demo.

Features

  • Start/Stop work with
    • Barcode scanner (via device camera, only works via HTTPS)
    • Barcode scanner (via USB or Bluetooth)
    • RFID scanner (via USB or Bluetooth)
    • Web NFC (see docs)
  • Upon starting/stopping a record via this plugin, the user will see a short overview screen with the entries of the current week (including some statistics)
  • New user profile screen for the “codes”
    • Display all codes for user
    • Generate a random code (automatically done if none is existing yet for the active code-type)
    • Re-use existing code for user by entering (or scanning) it manually
  • User specific settings to configured allowed start and end working time (user can only clock in between these times)
  • Supports the following 1D barcodes:
    • Code 128
    • Code 39
    • UPC-A (scanner needs to transmit check digit)
    • Code 2 of 5
    • Code 2 of 5 interleaved
    • Codabar (scanner needs to transmit start & stop digits)
  • Optional: show active / inactive users in login screen
  • Many CSS classes to customize the look with Custom CSS

You need to configure a non-global activity for starting the record via this plugin. This will be used for every recorded timesheet that is created using the kiosk mode.

Hardware

This is NOT a hardware recommendation, but more an idea for possible use-cases.

I tried the linked products and even though all scanner are rather cheap, they work without problems.

Above are affiliate links for Amazon (Germany) where I bought them myself.

Licenses

The following libraries are used and shipped with this plugin:

  • Barcode scanning: https://github.com/ericblade/quagga2 (Version: 0.0.18, License: MIT)
  • Barcode generation: https://github.com/metafloor/bwip-js (Version: 2.0.6, License: MIT)

Changelog

## Version 2.8.0

Compatibility: requires minimum Kimai 2.11.0

- Added: system configuration `kiosk.enabled` to disable Kiosk via local.yaml
- Added: allow to set NFC code in edit screen via WebNFC
- Changed: support attribute caching in Voter
- Changed: simplified buttons in users kiosk profile

## Version 2.7.0

Compatibility: requires minimum Kimai 2.11.0

- Added: show kiosk codes as user profile tab
- Added: print barcode on click to the image
- Changed: removed `barcode_own_profile` and `barcode_other_profile` permissions, replaced by `kiosk_own_profile` and `kiosk_other_profile`

## Version 2.6.0

Compatibility: requires minimum Kimai 2.11.0

- Changed: CSS files and language handling, required for Kimai 2.11.0
- Changed: Replaced deprecated RestRoute attribute with SF native one

## Version 2.5.0

Compatibility: requires minimum Kimai 2.1.0

- Use annotation type for routes

## Version 2.4.1

Compatibility: requires minimum Kimai 2.0.35

- Adjusted internal API usage to prevent calls to deprecated code

## Version 2.4.0

Compatibility: requires minimum Kimai 2.0.33

- Fixed: possible pagination issues

## Version 2.3.1

Compatibility: requires minimum Kimai 2.0.29

- Fixed: upgraded quagga from 0.0.18 to 1.8.2
- Fixed: upgraded bwip from 2.0.6 to 3.0.1

## Version 2.3.0

Compatibility: requires minimum Kimai 2.0.29

- Added: use language of the current user to render the welcome screen
- Added: use timezone of the current user to display the time

## Version 2.2.1

Compatibility: requires minimum Kimai 2.0.20

- Fixed: compatibility with Kimai 2.0.20 and Tabler Beta 19

## Version 2.2.0

Compatibility: requires minimum Kimai 2.0

- Added: Support for [Web NFC](https://developer.mozilla.org/en-US/docs/Web/API/NDEFReader) in freestyle mode
- Added: upgrade item actions to use v2 API

## Version 2.1.0

Compatibility: requires minimum Kimai 2.0

- Added: detect HTTP and include hint in error message, that webcam can only be accessed via HTTPS
- Added: Allow to manually select camera by user
- Added: Configuration if user may select the camera
- Added: Store used device ID in cookie
- Added: Configuration for input field placeholder
- Changed: Added and changed HTML IDs for better "Custom CSS" experience
- Fixed: disappearing error message

## Version 2.0.2

Compatibility: requires minimum Kimai 2.0

- Fixed: Do not auto-calculate new Kiosk code, to allow removing the last code from a user

## Version 2.0.1

Compatibility: requires minimum Kimai 2.0

- Fixed: Menu-Subscriber priority (missing in "Favorites" menu)

## Version 2.0

Compatibility: requires minimum Kimai 2.0

- Fixed: compatibility with Kimai 2.0
- BC break: Changed API URLs:
    - `/api/kiosks/kiosks` to `/api/kiosk/codes`
    - `/api/kiosks/kiosks/{id}` to `/api/kiosk/codes/{id}`

### Version 1.12

Compatibility: requires minimum Kimai 1.15

- Added: missing translation for "Code"

### Version 1.11

Compatibility: requires minimum Kimai 1.15

- Added: support **multiple codes per user**
- Added: delete single code
- Added: edit code with activity

### Version 1.10

Compatibility: requires minimum Kimai 1.15

- Added: reload scanner page every 14 minutes to prevent CSRF token / session issues (PHP default session timeout is 14 minutes)
- Added: set an **activity per user and code**, which allows to overwrite the global configured code
- Added: new setting to prevent stopping of non-kiosk activities
- Added: edit existing codes

## Version 1.9

Compatibility: requires minimum Kimai 1.15

- Added: a new configuration to prevent page reloads after login (activated by default)

## Version 1.8

Compatibility: requires minimum Kimai 1.15

- Added: API functions to load available codes (list of all codes only available to user with permission `kiosk_admin`)
- Fixed: do not display codes for disabled users
- Fixed: definitions for new Kimai version

## Version 1.7

Compatibility: requires minimum Kimai 1.14

- Added: beep (login) and boop (logout) sounds (off by default)

## Version 1.6

Compatibility: requires minimum Kimai 1.11

- Added: allow CSS customization via event
- Added: the following CSS classes, for building selectors:
    - `kiosk-login`: the kiosk login screen with the code input/scanner
    - `kiosk-login-status`: status page (started and stopped)
    - `kiosk-started`: status page after record has been started (login)
    - `kiosk-stopped`: status page after record has been stopped (logout)
    - `kiosk-users`: list of active and inactive users with avatars (features must be activated)
    - Example: hide the logo on login and logout page via Custom CSS bundle:
    ```css
    .kiosk-login-status .login-logo { display:none; }
    .kiosk-login-status .login-box-body { margin-top: 50px; }
    ```
- Added: the following new configurations
    - `hide logo`: hide logo on status pages (login and logout)
    - `hide code`: turns the code input field into a password field
- Added: a new configuration to show active users in login screen
- Added: a new configuration to show inactive users in login screen

## Version 1.5

Compatibility: requires minimum Kimai 1.11

- Added: Configuration to activate IP address logging when starting a new entry
- Added: Simplify installation (assets will be installed automatically)
- Fixed: Composer 2 compatibility

## Version 1.4

Compatibility: requires minimum Kimai 1.10

- Added "Freestyle" code format, which can be used for example:
    - with a simple keyboard (eg. door-lock)
    - RFID reader which act as keyboard (like barcode scanners)
    - see Hardware section in [README.md](README.md)
- Added new `kiosk_admin` permission (by default assigned to Super-Admins)
- Added Kiosk Admin page showing all users with attached codes (needs `kiosk_admin` permission)
- Prevent invalid time configuration in user-preferences
- Show all configured codes on user screen (highlight active type)

## Version 1.3

- Added allowed start and end times for each user (new permissions `kiosk_own_profile` and `kiosk_other_profile`)

## Version 1.2

- Fixed timezone issue

## Version 1.1

- Fixed configuration problem, removed project setting

## Version 1.0

- Initial release

安裝

複製檔案

Extract the ZIP file and upload the included directory and all files to your Kimai installation to the new directory:

var/plugins/KioskBundle/

The file structure needs to look like this afterwards:

var/plugins/
├── KioskBundle
│   ├── KioskBundle.php
|   └ ... more files and directories follow here ...

清除快取

After uploading the files, Kimai needs to know about the new plugin. It will be found once the cache was re-built. Call these commands from the Kimai directory:

How to reload Kimai cache

bin/console kimai:reload --env=prod

It is not advised, but in case the above command fails you could try:

rm -r var/cache/prod/*

You might have to set file permissions afterwards:

Adjust file permission

You have to allow PHP (your webserver process) to write to var/ and it subdirectories.

Here is an example for Debian/Ubuntu (to be executed inside the Kimai directory):

chown -R :www-data .
chmod -R g+r .
chmod -R g+rw var/

建立資料庫

Run the following command:

bin/console kimai:bundle:kiosk:install

This will create the required database tables and update them to the latest version.

安裝額外資源

The following command will install the required assets (images, javascripts, styles):

bin/console assets:install

更新

Updating the plugin works exactly like the installation:

  • Delete the directory var/plugins/KioskBundle/
  • Execute all installation steps again:
    • 複製檔案
    • 清除快取
    • Update database with bin/console kimai:bundle:kiosk:install
    • Update assets with bin/console assets:install

相容性

下表比較了外掛程式與所需的最低 Kimai 版本。

套件版本 最低 Kimai 版本
2.6.0 - 2.8.0 2.11.0
2.5.0 2.1.0
2.4.1 2.0.35
2.4.0 2.0.33
2.3.0 - 2.3.1 2.0.29
2.2.1 2.0.20
2.0 - 2.2.0 2.0
1.8 - 1.12 1.15
1.7 1.14
1.5 - 1.6 1.11
1.4 1.10
1.0 - 1.3 1.8

體驗版本

如要測試此外掛程式,可前往體驗版網頁 demo.kimai.org:

使用者名稱: susan_super
密碼: kitten

在此處找到更多測試帳號.

使用截圖

Screenshot

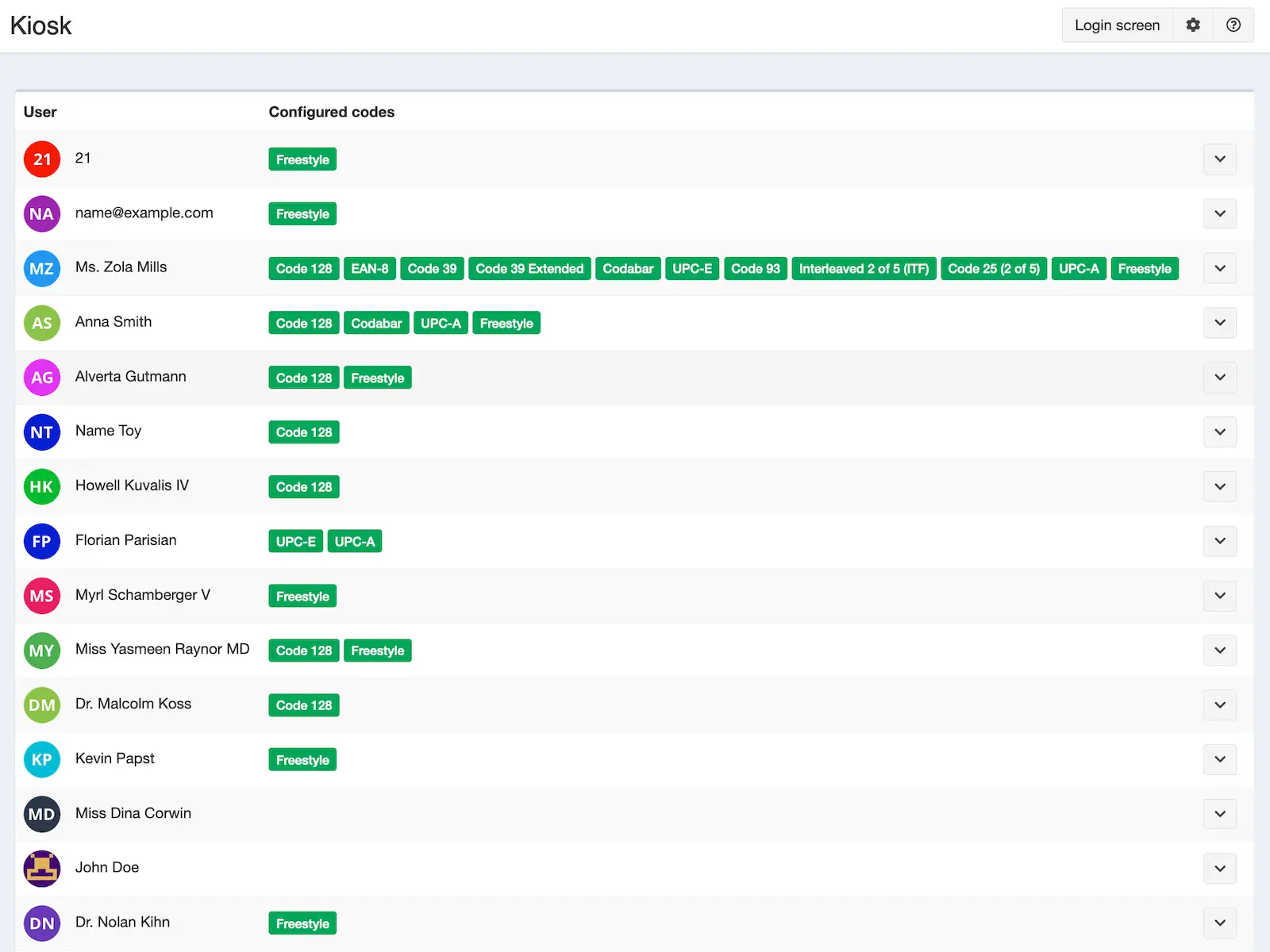

顯示了所有使用者所各別設定的登入代碼格式設定的清單
Screenshot

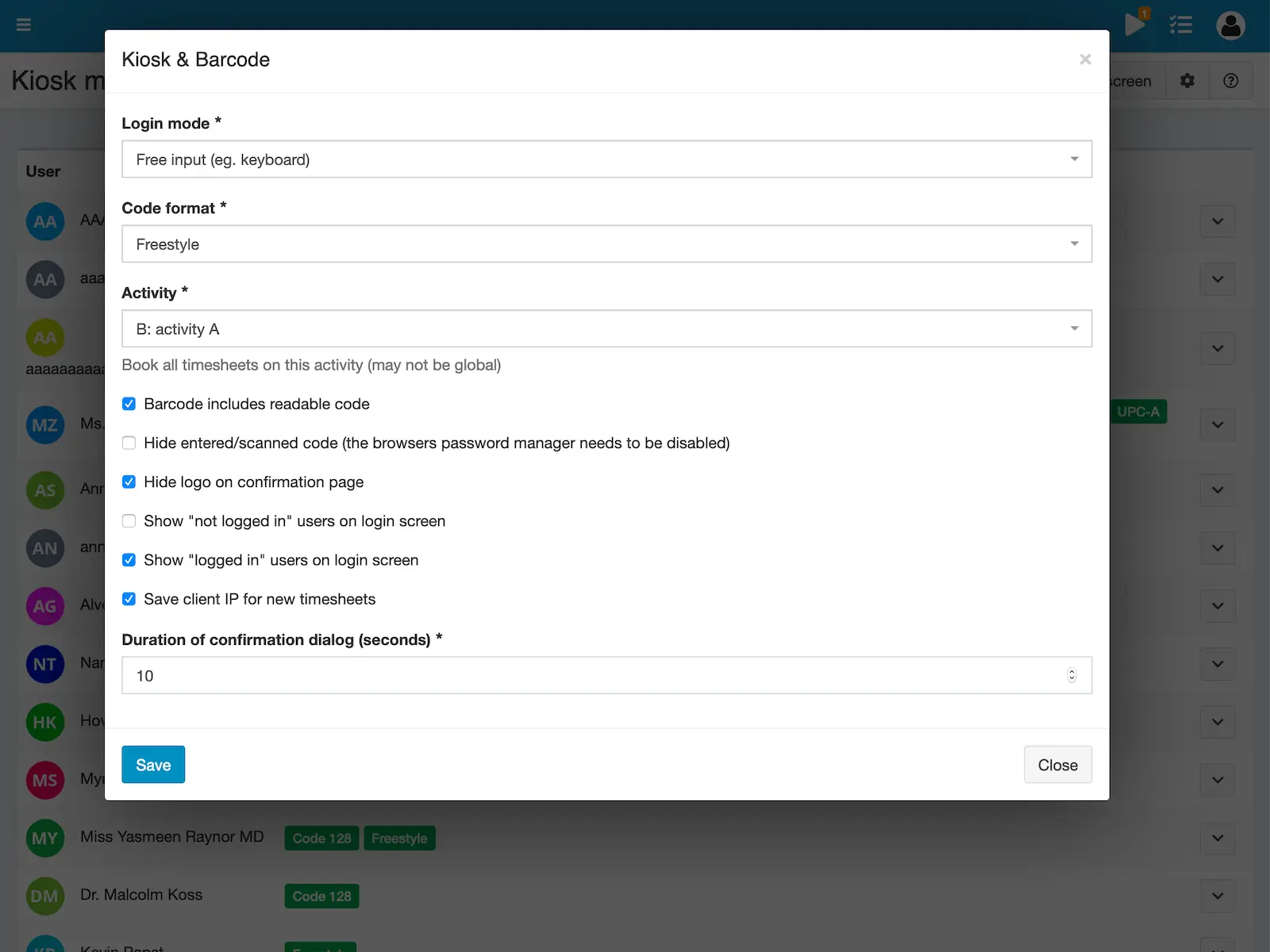

請依您的需求設定 Kiosk 外掛程式,注意僅會列出登入模式與代碼格式相配的選項
Screenshot
新產生的條碼,可列印並交給該使用者
Screenshot

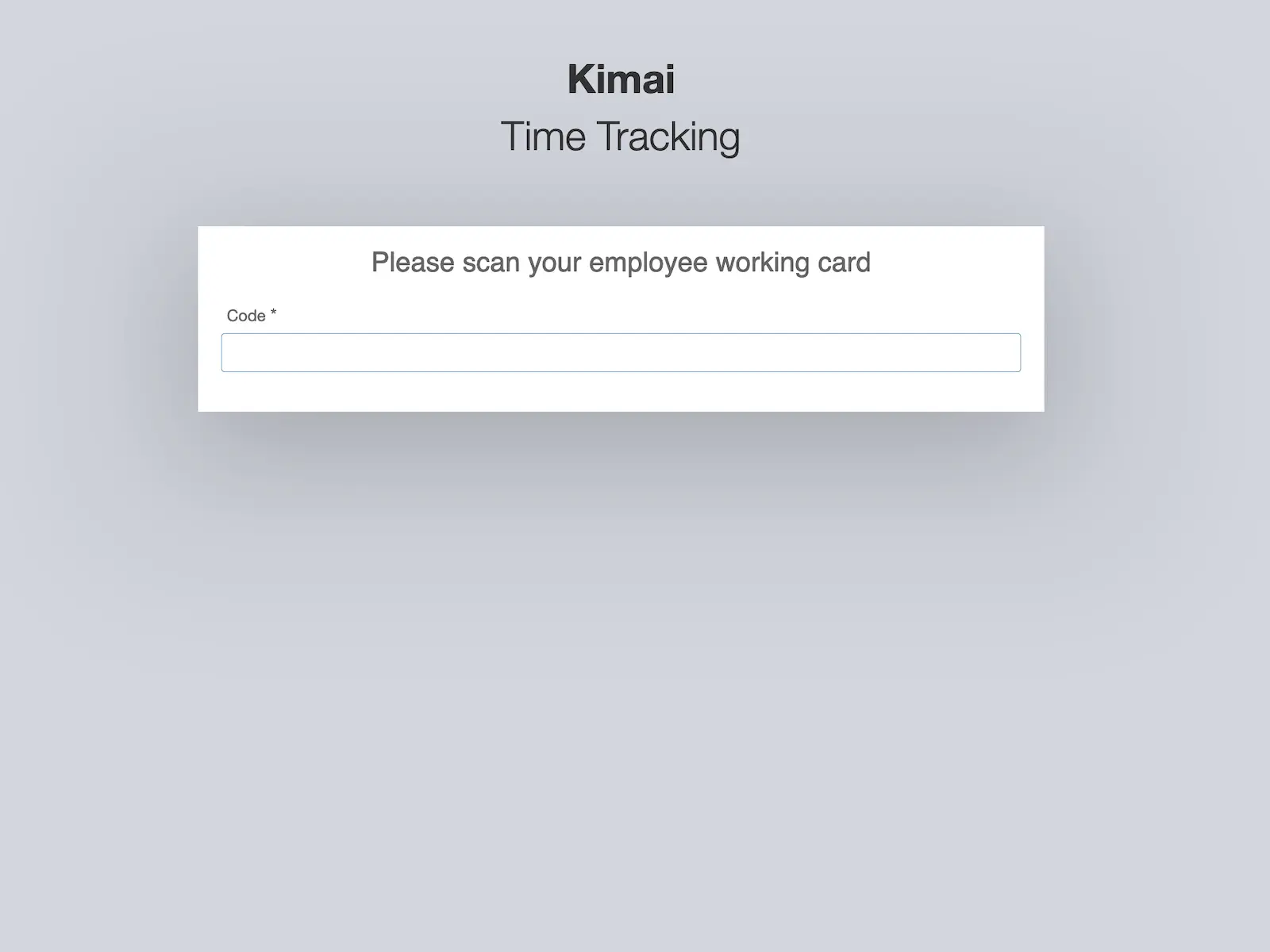

「Barcode with USB scanner」登入模式的畫面範例,輸入欄會被自動選擇,而掃描器解讀出代碼後會自動送出
Screenshot

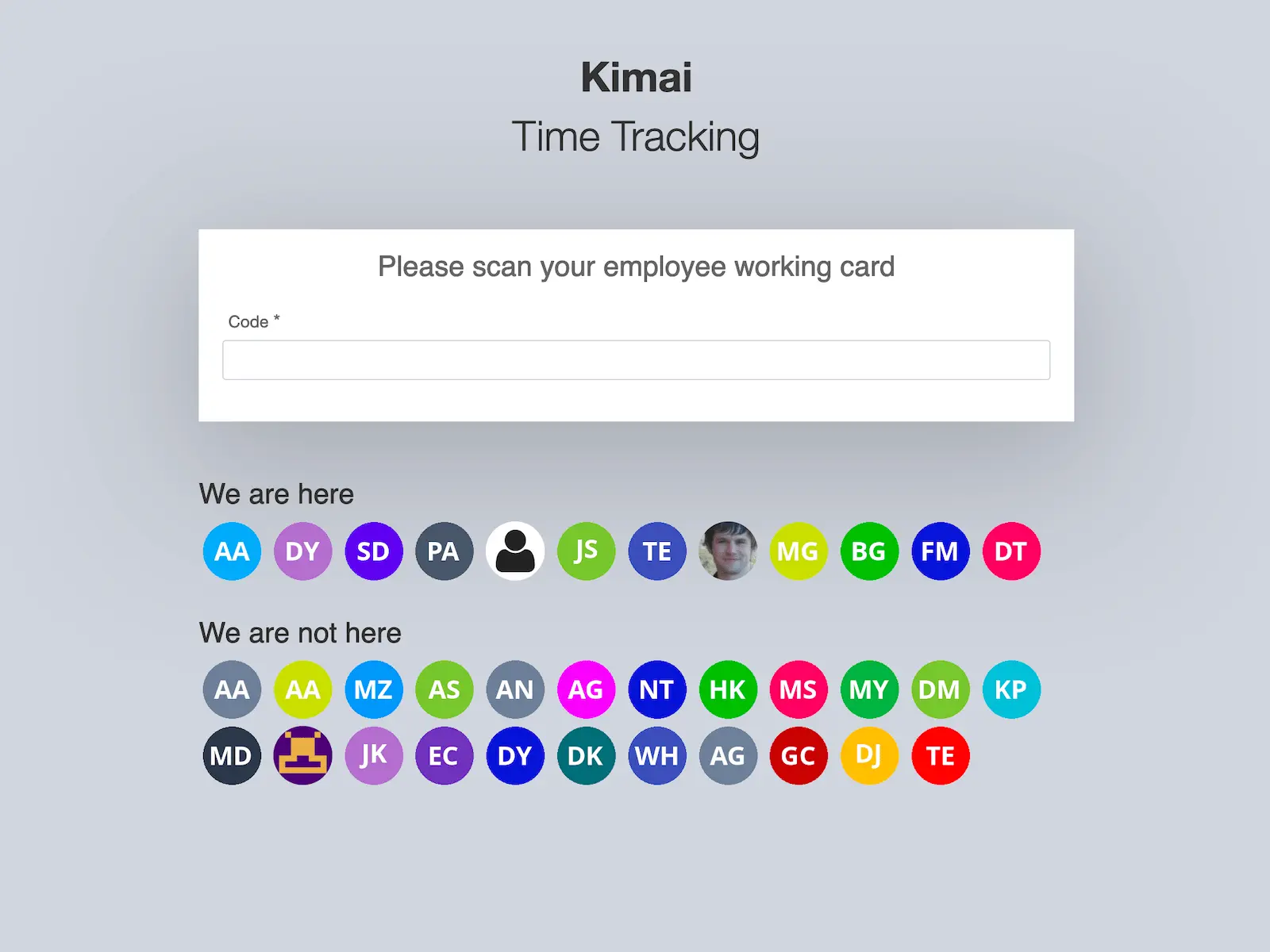

啟用了使用者名單功能的登入畫面
Screenshot

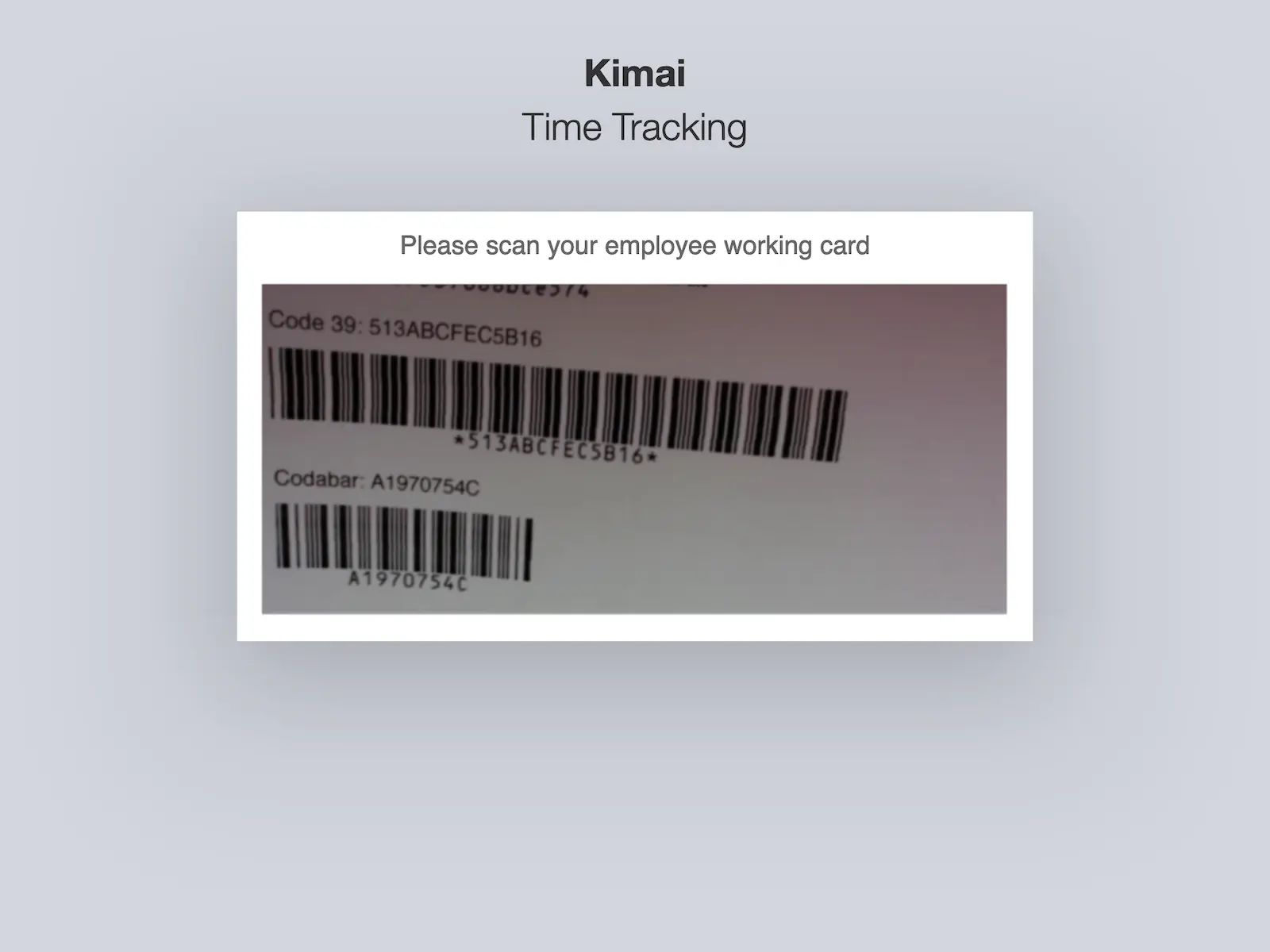

「Barcode with device cam」登入模式會顯示攝影機畫面並持續偵測是否有條碼與進行掃描
Screenshot

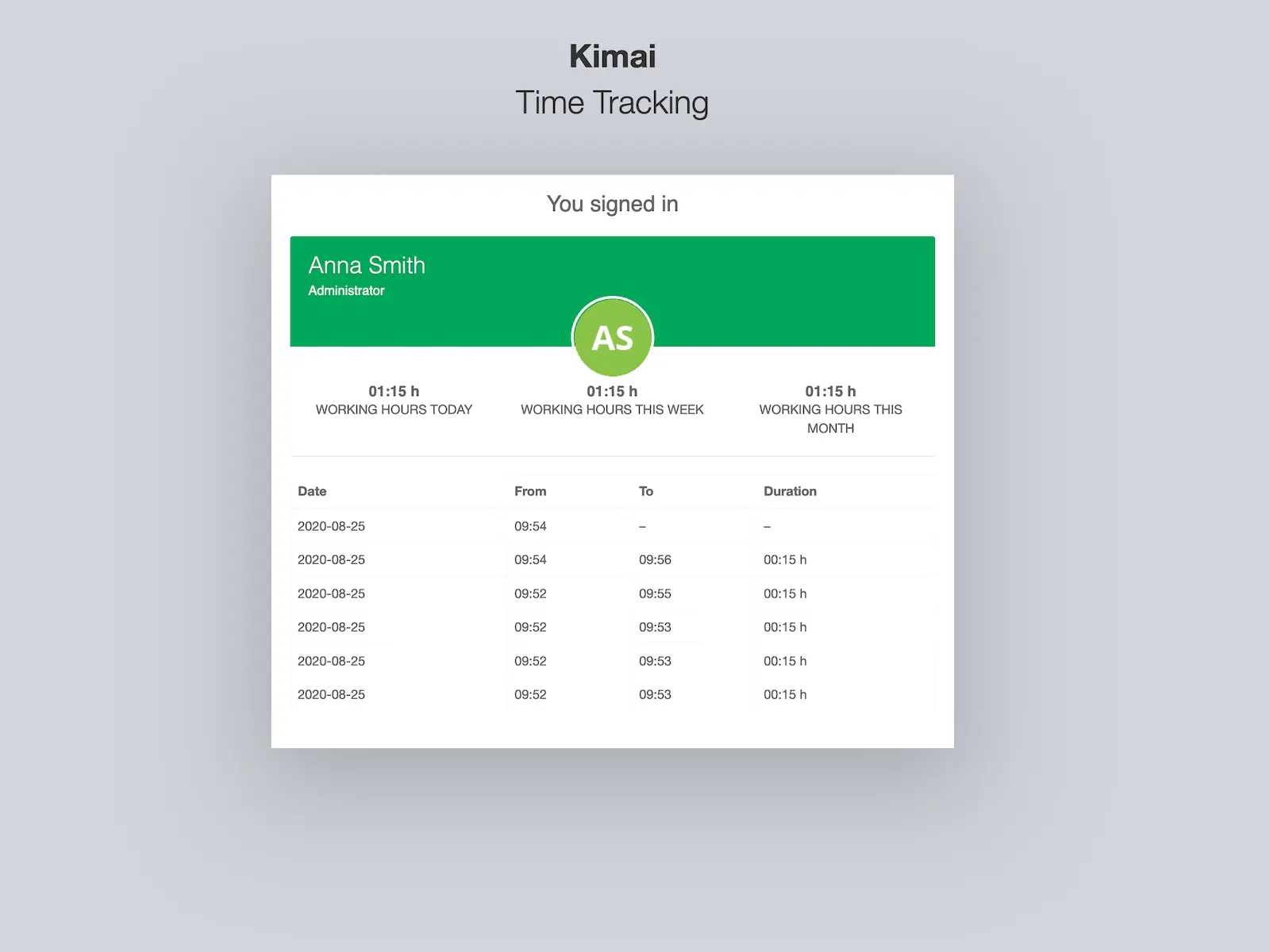

掃描到已存在的使用者的代碼時,將開始新的工時單紀錄
Screenshot
或結束已在進行中的工時單紀錄

常見問題

這些常見問題由本外掛程式的開發者提供。

You can buy the plugin via the Marketplaces 'Lemon Squeezy' or 'Gumroad' and pay with Credit Card or PayPal. Both offer instant access to the purchases.

Support-questions, bug-reports and feature-requests will be answered in this Github repository
